How to Choose a Small Marine RO Desalination Unit for Your Boat?

Choosing the right small marine RO desalination unit is an important decision for boat owners, yacht operators, fishing vessels, and marine engineering companies. A properly sized seawater RO system can provide a reliable source of fresh water without depending entirely on shore-based water supplies.
However, choosing a marine watermaker is not simply a matter of selecting the largest freshwater production capacity. The right system depends on your vessel type, daily water consumption, crew size, available electrical power, installation space, seawater conditions, and maintenance requirements.
For small vessels and yachts, marine RO systems are commonly designed in compact configurations that can produce several cubic meters of fresh water per day. Typical capacities such as 5 m³/day, 10 m³/day, and 15 m³/day ,20m³/day can serve different vessel sizes and freshwater requirements.
This guide explains how to select the right small marine RO desalination unit for your boat or yacht.

What Is a Small Marine RO Desalination Unit?

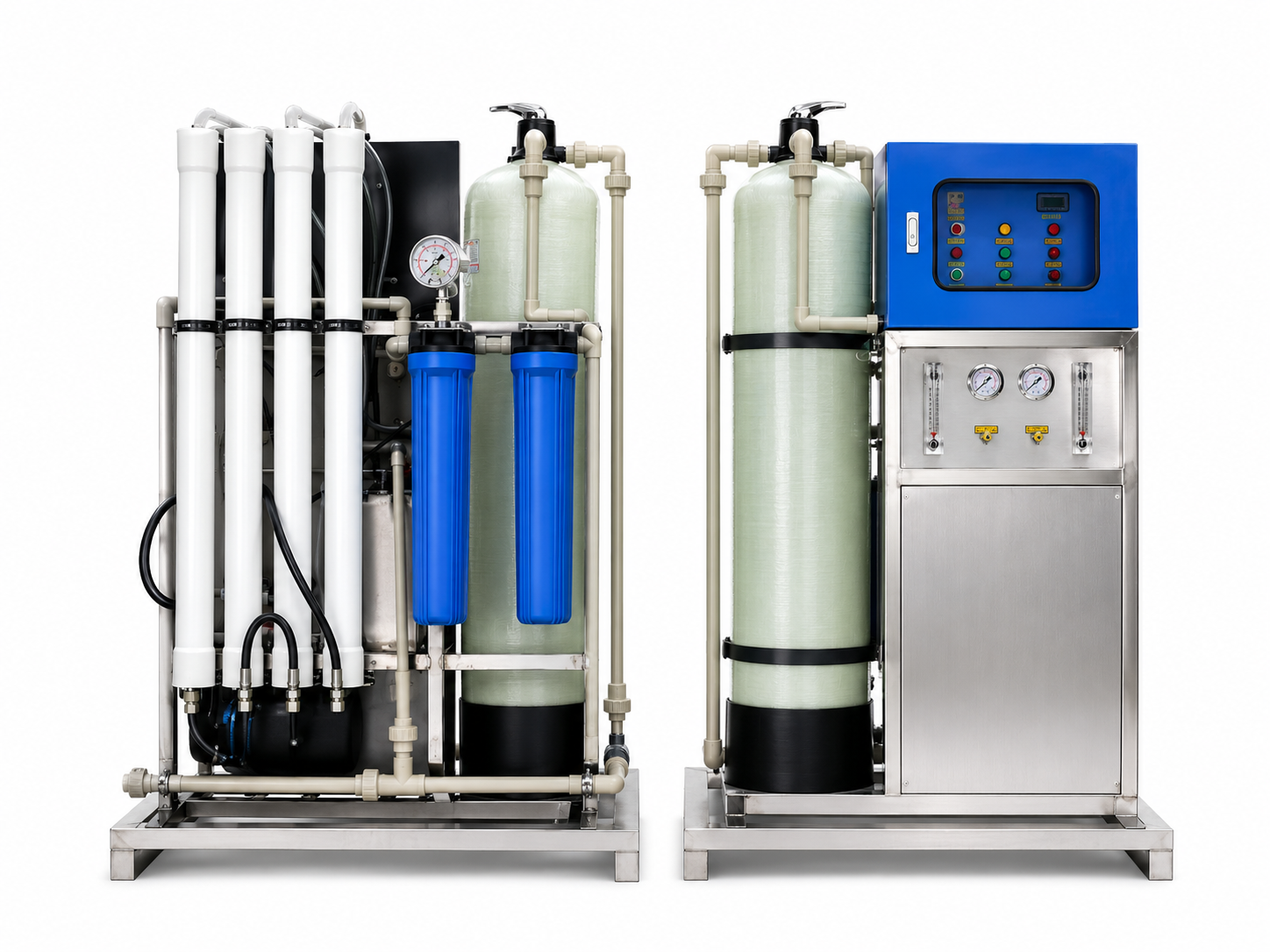

A small marine RO desalination unit is a compact seawater reverse osmosis system designed to convert seawater into fresh water onboard a vessel.

The basic process uses a high-pressure pump to force pre-filtered seawater through a semi-permeable RO membrane. Water molecules pass through the membrane, while most dissolved salts and other contaminants are rejected.

The system normally produces two streams:

Permeate: Freshwater produced by the RO membrane

Concentrate: High-salinity brine discharged from the system



A typical marine RO system includes seawater intake, pretreatment filters, a high-pressure pump, RO membrane vessels, flow meters, pressure gauges, valves, piping, and a control system.

1. Start With Your Daily Freshwater Requirement

The first question should not be:

“How big is my boat?”

Instead, start with:

“How much fresh water does my vessel need every day?”

Freshwater demand can include:

Drinking water，Cooking，Showering，Dishwashing，Cleaning，Laundry，Crew accommodation，Guest facilities，Other onboard equipment

A useful calculation is:

Daily Freshwater Demand = Number of People × Average Water Consumption per Person

For example, if a vessel normally carries 10 people and the estimated freshwater requirement is 40 L/person/day:

10 × 40 = 400 L/day

A system producing 5 m³/day has a nominal production capacity of 5,000 L/day, giving substantial capacity above this basic demand.

Actual requirements should be adjusted according to vessel operation. A yacht used for weekend trips may have very different water consumption from a fishing boat operating offshore for several days.

Marine watermaker guides also recommend calculating daily consumption and then working backward to the required hourly production and operating time.

2. Choose the Right Marine RO Capacity

For small and medium-sized vessels, several capacity ranges can be considered.

Marine RO Capacity	Freshwater Production	Typical Application
1–3 m³/day	1,000–3,000 L/day	Small boats, limited crew
5 m³/day	5,000 L/day	Small yachts, fishing boats
10 m³/day	10,000 L/day	Larger yachts, fishing vessels, small commercial vessels
15 m³/day	15,000 L/day	Larger fishing boats, workboats, offshore applications

These values describe nominal daily production. Actual production can vary with seawater temperature, salinity, operating pressure, membrane condition, and pretreatment performance.

5 m³/day Marine RO System

A 5 m³/day marine RO desalination unit is a good starting point for vessels with relatively moderate freshwater requirements.

It can be suitable for:

Small yachts

Leisure boats

Fishing boats

Small workboats

Small offshore vessels

Its compact capacity can also make it easier to integrate into vessels where installation space is limited.

10 m³/day Marine RO System

A 10 m³/day marine RO watermaker provides approximately twice the nominal daily output of a 5 m³/day system.

It may be considered when the vessel has:

More crew members

Higher shower and cleaning demand

Longer offshore operating periods

Larger freshwater storage requirements

More frequent freshwater consumption

15 m³/day Marine RO System

A 15 m³/day marine desalination unit is suitable when freshwater demand is significantly higher.

Potential applications include:

Commercial fishing vessels

Larger workboats

Offshore support vessels

Larger yachts

Patrol and service vessels

For commercial vessels, selecting additional production capacity can also provide operational flexibility when freshwater demand changes.

3. Consider the Vessel Type

The same watermaker is not necessarily suitable for every vessel.

Yachts and Leisure Boats

Yachts typically prioritize:

Compact dimensions

Low noise

Reliable freshwater production

Easy operation

Automatic controls

Easy maintenance

For yachts, installation space is often one of the most important considerations.

Fishing Boats

Fishing vessels may require more continuous freshwater production because crews can remain offshore for extended periods.

Important factors include:

Crew size

Trip duration

Freshwater storage capacity

Available electrical power

Ease of maintenance

Resistance to the marine environment

Small Commercial Ships

Commercial vessels generally require reliable operation and predictable freshwater production.

For these applications, the selection should consider both normal consumption and peak demand.

Offshore Vessels

Offshore vessels can have higher freshwater requirements and more demanding operating conditions. Marine-grade components, corrosion resistance, automatic monitoring, and service accessibility become increasingly important.

4. Check Your Available Power Supply

Electrical compatibility is another critical factor when selecting a marine RO system.

Before requesting a quotation, confirm the vessel’s available power supply.

Common configurations may include:

12 V DC

24 V DC

220–240 V AC

380 V AC / 3 phase or Customized

The required power depends on the system design, freshwater capacity, high-pressure pump, membrane configuration, and optional equipment.

Do not select a watermaker based only on its freshwater production capacity. A higher-capacity system may require a larger electrical supply.

For example, a vessel with limited battery capacity may require a different system configuration from a commercial vessel equipped with a generator.

Marine watermaker selection guides similarly identify power supply as one of the key factors alongside boat size, crew, and daily water demand.

5. Check the Available Installation Space

Space is often a major challenge on small vessels.

Before purchasing a marine RO desalination unit, measure:

Available length

Available width

Available height

Door and hatch dimensions

Access for maintenance

Distance from seawater intake

Distance to freshwater tank

Drain and brine discharge location

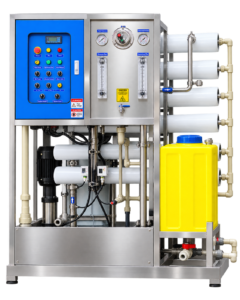

Our Machine Dimension and Weight:

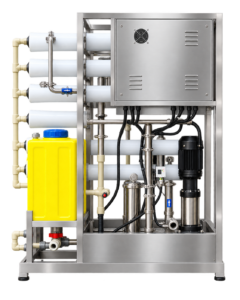

Model	5m3/D	10m3/D	15m3/D	20m3/D
Dimen.L,W,H/cm	120*60*150	140×65×185	140×75×195	140×75×195
Weight	300kgs	850Kg	1.1T	1.4T
Person Equivalent	1-30PE	30-50PE	50PE	100PE

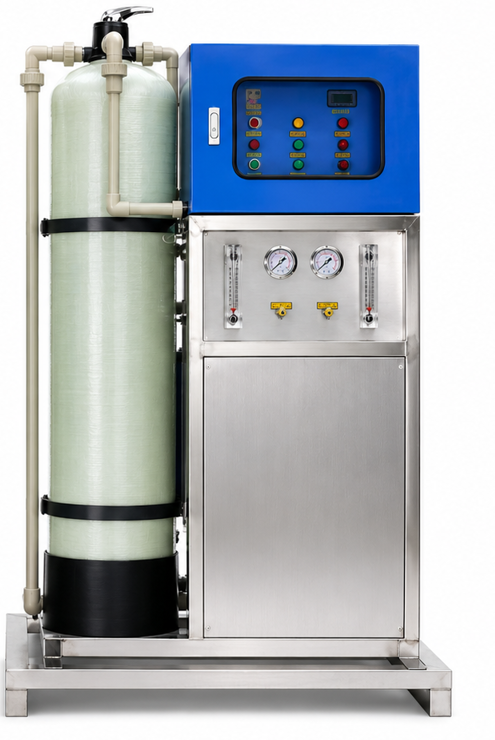

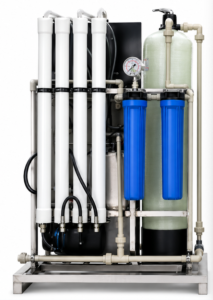

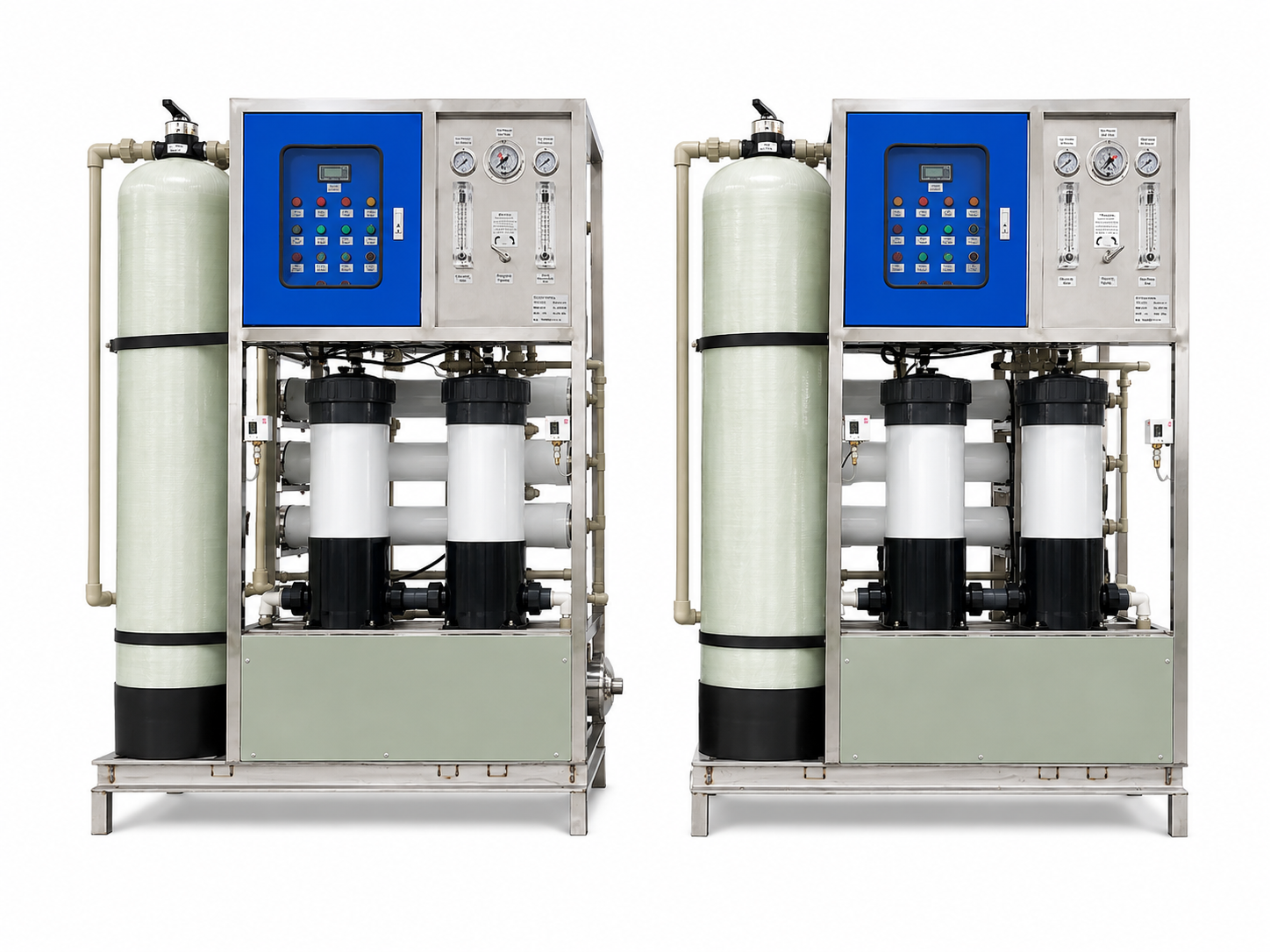

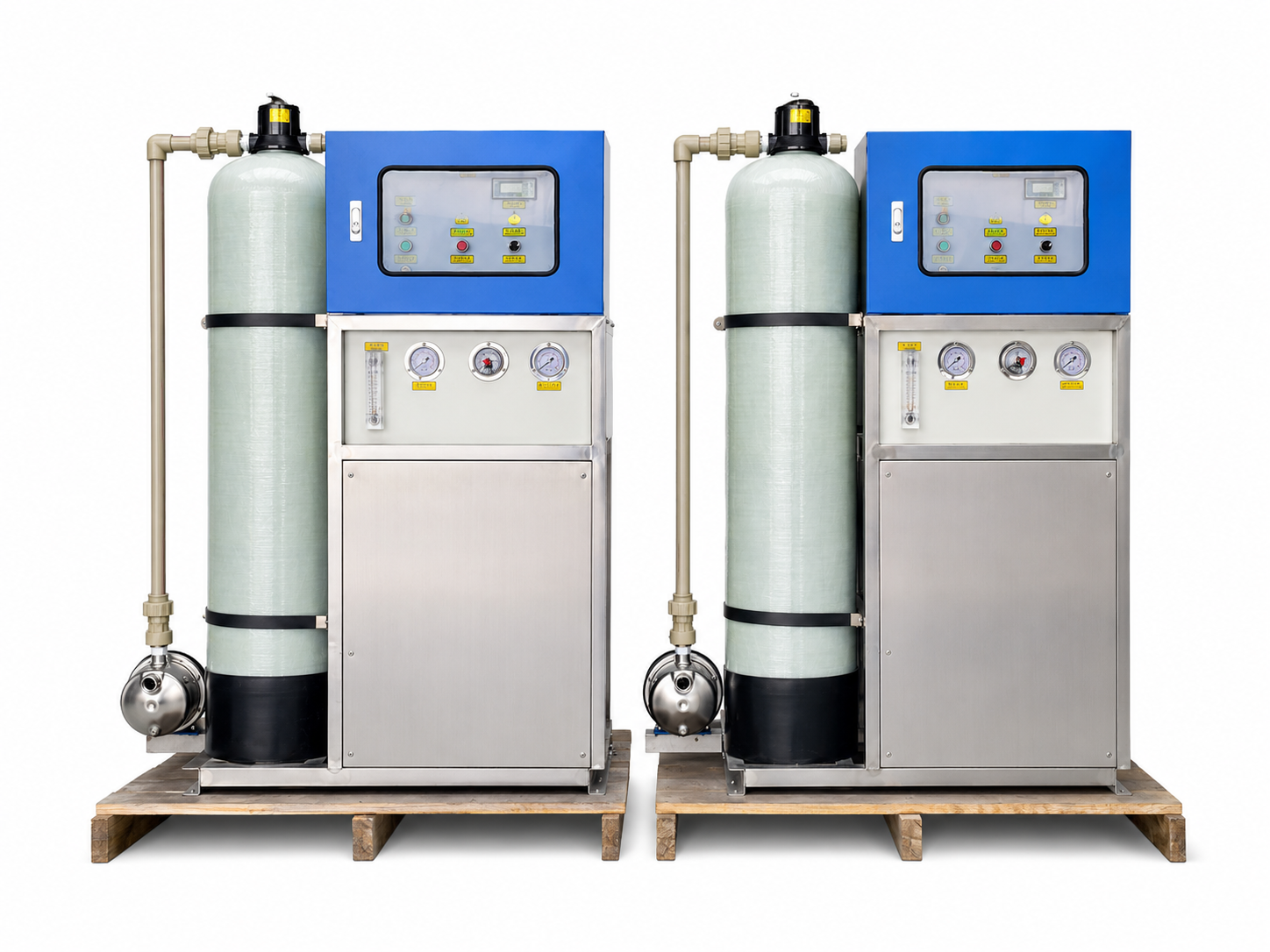

Picture	m3 per day marine sw ro machine	5m3 per day sea water machine	20m3 per day sw ro machine	20m3 per day sea water machine



A compact skid-mounted system can simplify installation, but sufficient service clearance should still be provided.

For vessels with very limited space, a modular configuration may be useful because components can be installed separately instead of occupying one large equipment footprint.

Installation Space Is Not Only About Equipment Dimensions

Do not measure only the footprint of the RO skid.

You also need space to:

Replace cartridge filters

Inspect pumps

Access valves

Check pressure gauges

Service the RO membrane

Connect electrical cables

Route seawater and freshwater pipes



A professional marine RO system supplier should consider both the equipment footprint and the maintenance area when preparing a quotation.

6. Understand the Marine RO Treatment Process

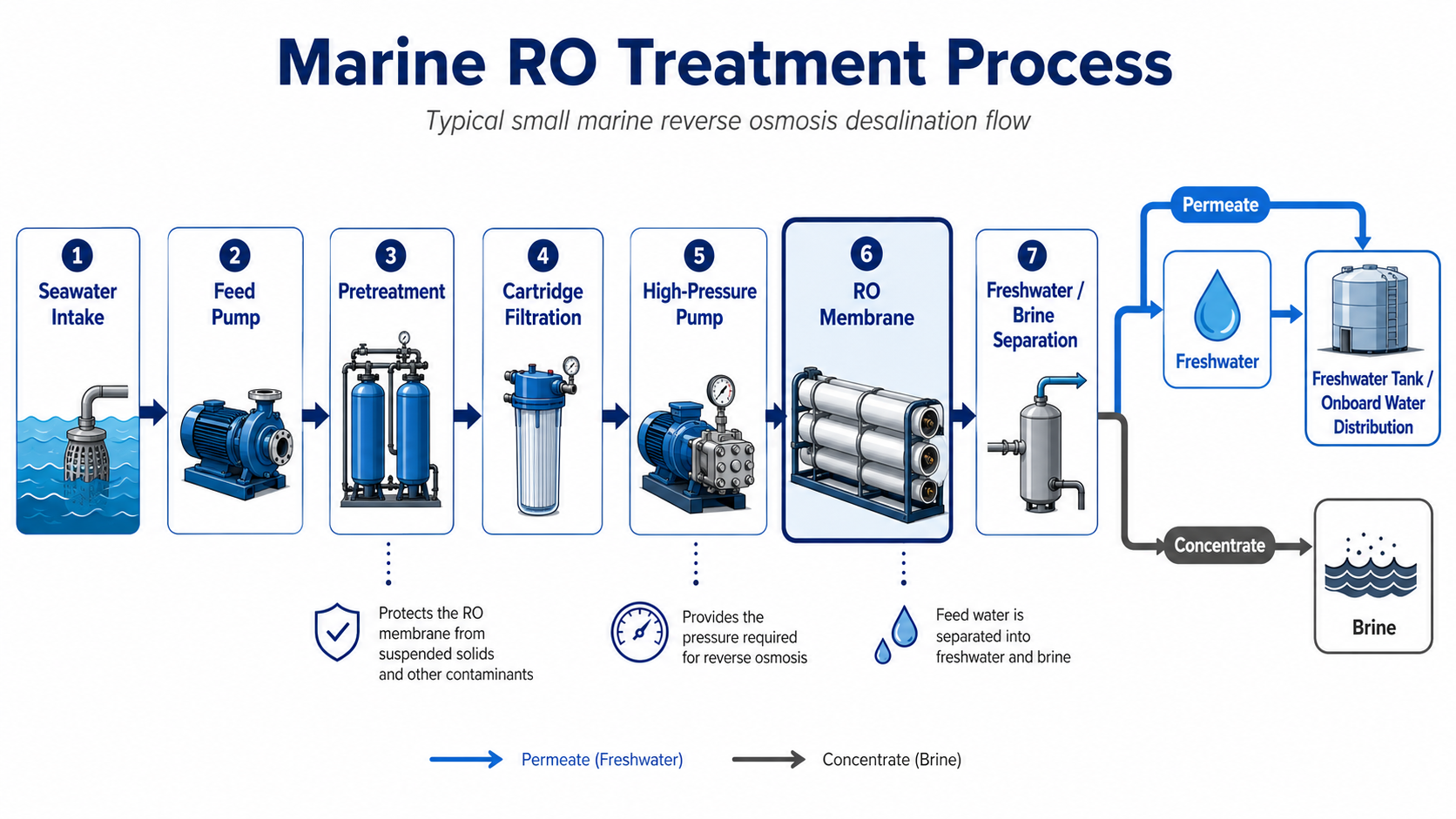

A typical small marine RO desalination system follows this basic process:

Seawater Intake → Feed Pump → Pretreatment → Cartridge Filtration → High-Pressure Pump → RO Membrane → Freshwater / Brine Separation

The pretreatment stage protects the RO membrane from suspended solids and other contaminants.

The high-pressure pump then provides the pressure required for reverse osmosis.

Inside the RO membrane vessel, the feed water is separated into:

Permeate → Freshwater

and

Concentrate → Brine

The freshwater can then be sent to a freshwater tank or onboard water distribution system.

7. Pay Attention to Pretreatment

RO membranes are sensitive to suspended solids, fouling, scaling, and certain chemical contaminants.

Therefore, pretreatment is an important part of a marine watermaker.

Depending on the system design and seawater conditions, pretreatment may include:



Seawater intake strainer

Sediment filtration

Cartridge filtration

Activated carbon or other treatment where appropriate

Antiscalant dosing where required



The exact pretreatment configuration should be determined according to the seawater quality and RO membrane requirements.

For vessels operating in harbors, coastal areas, or waters with high suspended solids, pretreatment becomes especially important.

8. Select the Right RO Membrane Configuration

The RO membrane is the core desalination component.

When selecting a marine RO system, ask the supplier about:

RO membrane model

Membrane quantity

Membrane size

Salt rejection

Design flux

Operating pressure

Expected freshwater production

Feedwater salinity

Membrane replacement availability



The membrane should be selected according to the intended seawater conditions rather than simply choosing the membrane with the highest advertised output.

A marine RO system designed for seawater should also be operated within the membrane manufacturer’s recommended pressure, flow, temperature, and chemical limits.

9. Consider Water Temperature and Salinity

Marine RO production is not completely independent of seawater conditions.

Two vessels using the same RO system can experience different production rates if they operate in different environments.

Important variables include:

Feedwater temperature

Salinity / TDS

Turbidity

Suspended solids

Organic contamination

Membrane condition

Operating pressure



For example, cold seawater can reduce membrane permeate production compared with warmer seawater.

Higher salinity can also increase the pressure required for desalination.

Therefore, when requesting a quotation, provide the supplier with your expected seawater TDS or salinity whenever possible.

10. Automatic Control and Monitoring

For marine applications, an automatic control system can make operation easier and safer.

Useful monitoring functions may include:

Feed pressure

RO operating pressure

Permeate flow

Concentrate flow

Conductivity / TDS

High-pressure protection

Low-pressure protection

Pump protection

Automatic shutdown



A PLC-based control panel can also simplify operation for crew members who may not have specialist RO experience.

For commercial and offshore vessels, online monitoring can be particularly valuable because operators can identify abnormal pressure or water-quality conditions before they develop into larger problems.

But automatic machine is difficult to make maintenance so we choose manual kind design which is better to use on ocean.

11. Think About Maintenance Before You Buy

A marine watermaker is exposed to seawater, vibration, humidity, and changing operating conditions.

Therefore, maintenance should be considered during the selection stage.

Ask your supplier:



How often should cartridge filters be replaced?

How often should the RO membrane be cleaned?

What chemicals are required for cleaning?

Are replacement membranes readily available?

Are standard pumps and valves used?

Can the system be serviced by a local technician?

Is remote technical support available?

A system with easily accessible filters, pumps, valves, and instruments can reduce downtime.

For a vessel operating far from port, spare parts availability can be just as important as the initial equipment price.

12. Compare Suppliers Before Requesting a Quotation

When comparing marine RO desalination suppliers, do not compare price alone.

Ask each supplier to provide the following information:

Item	Information to Request
Freshwater Capacity	m³/day or L/hour
Feedwater	Seawater TDS / salinity
Recovery	Design recovery rate
Operating Pressure	bar / MPa
RO Membrane	Brand and model
High-Pressure Pump	Brand and model
Power Supply	Voltage / phase / frequency
Power Consumption	kW
Dimensions	L × W × H
Weight	kg
Control System	Manual / Automatic / PLC
Material	SS304 / SS316 / other
Water Quality	Permeate TDS / conductivity
Warranty	Warranty period
Spare Parts	Availability
Delivery	Production and shipping time

This information makes it much easier to compare different systems on a like-for-like basis.

13. What Information Should You Send to a Marine RO Supplier?

If you want an accurate quotation, provide as much technical information as possible.

A good RFQ should include:

1. Vessel type:
   Yacht, fishing boat, workboat, commercial ship, offshore vessel, etc.
2. Freshwater requirement:
   For example, 5 m³/day, 10 m³/day, or 15 m³/day,20m3/day.
3. Number of people onboard:
   Crew and passengers.
4. Seawater conditions:
   TDS or salinity, temperature, and location if available.
5. Power supply:
   12 V DC, 24 V DC, 220 V AC, 380 V AC, etc.
6. Installation space:
   Available L × W × H.
7. Freshwater destination:
   Freshwater tank, drinking-water system, general service water, etc.
8. Automation requirements:
   Manual control, automatic control, PLC, conductivity monitoring, etc.

Providing this information allows the manufacturer to recommend a more suitable configuration instead of simply sending a standard price list.

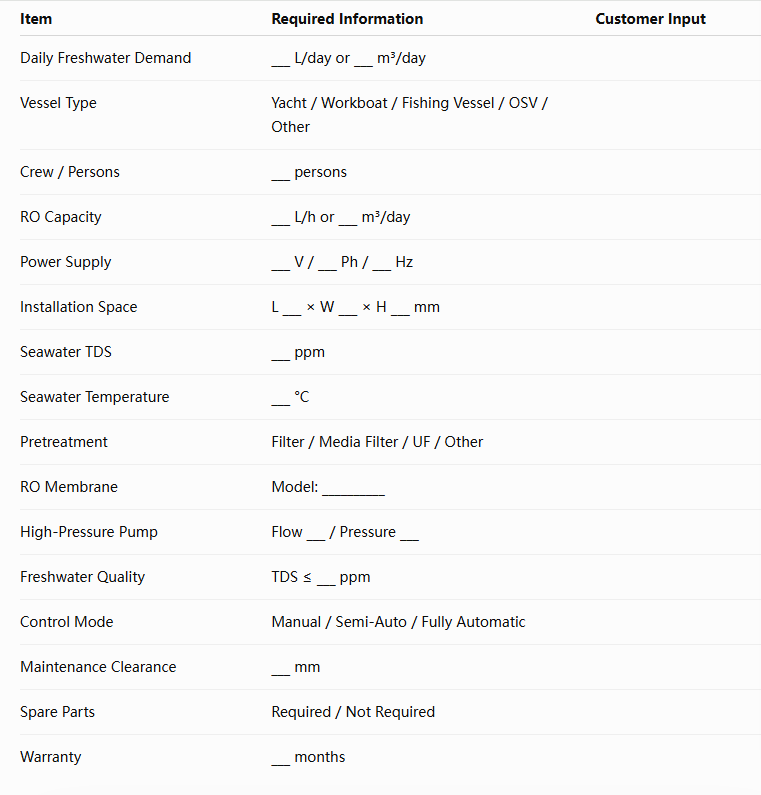

Small Marine RO Desalination Unit Selection Checklist

Before ordering, check the following:

Daily freshwater demand has been calculated

Vessel type and crew size are confirmed

Required RO capacity has been selected

Electrical power supply is confirmed

Installation dimensions are available

Seawater salinity/TDS is known

Seawater temperature is considered

Pretreatment requirements are confirmed



RO membrane model is specified

High-pressure pump is specified

Freshwater quality requirement is confirmed

Automatic control requirements are confirmed

Maintenance access is available

Spare parts availability is confirmed

Warranty and after-sales support are clear



5 m³/day, 10 m³/day or 15 m³/day: Which Marine RO System Is Right for You?

There is no universal answer.

A 5 m³/day marine RO desalination unit may be appropriate for a small yacht, fishing boat, or vessel with moderate freshwater demand.

A 10 m³/day marine RO system may be more suitable for vessels with larger crews, higher consumption, or longer offshore operating periods.

A 15 m³/day marine RO watermaker can provide additional capacity for larger fishing boats, workboats, offshore vessels, and other applications with higher freshwater demand.

The best selection is the system that provides sufficient freshwater production while matching your vessel’s available power, installation space, seawater conditions, operating schedule, and maintenance requirements.

Conclusion

Selecting a small marine RO desalination unit should begin with your actual freshwater requirements rather than simply choosing the largest available model.

The most important factors are:

Freshwater demand + vessel type + power supply + installation space + seawater quality + RO membrane configuration + maintenance requirements.

For small marine applications, compact 5 m³/day, 10 m³/day, and 15 m³/day seawater RO systems can provide flexible options for yachts, fishing boats, workboats, and other vessels.

If you are unsure which capacity is suitable for your vessel, provide your vessel type, number of people onboard, required freshwater production, available power supply, seawater TDS, and available installation space. A marine RO manufacturer can then recommend the appropriate configuration.

Request a Marine RO Desalination System Quotation

Looking for a compact marine RO desalination unit for your boat or yacht?

Contact Besta with the following information:

Vessel Type + Freshwater Capacity + Power Supply + Seawater TDS + Installation Space

Our technical team can help you evaluate the appropriate marine RO configuration for your application.
