seawater desalination equipment（240ton/day)
Click to enlarge

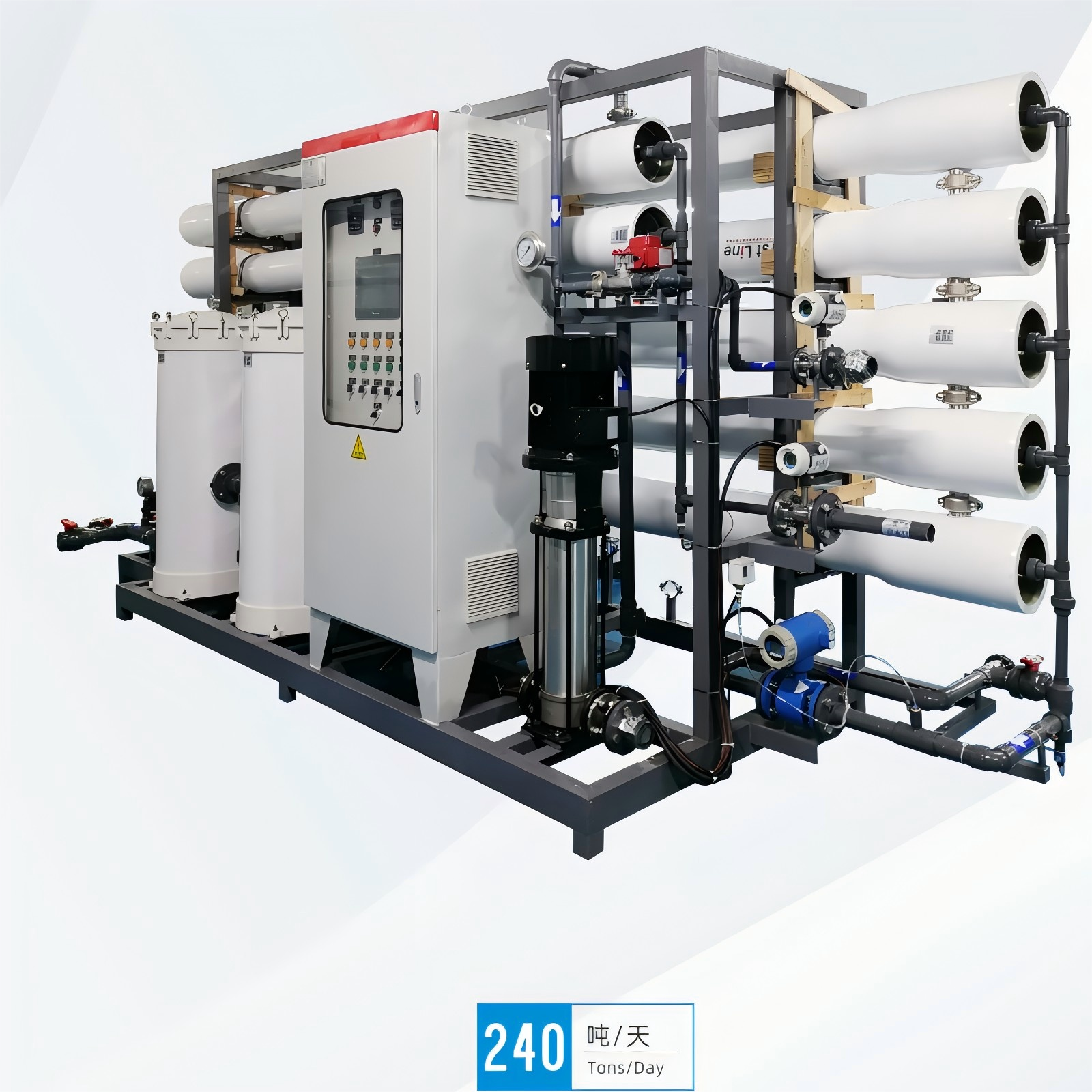

Seawater Desalination System（240Ton/Day）

This 240-ton-per-day seawater desalination system utilizes advanced reverse osmosis technology. With features such as high efficiency, user-friendly operation, easy maintenance, strong reliability, and eco-friendly energy-saving design, it is widely used in applications including island water supply, coastal city water supply, offshore vessels and platforms, agriculture and aquaculture, and emergency rescue. Thanks to its exceptional performance and wide applicability, it has become a highly recognized freshwater solution in the market.

CONTACT US
Category:
  • No.36, Qiancheng, Yiwu, Jinhua, Zhejiang Province
  • Phone: +86 13251303762
  • Mail: info@best-filtration.com
  • Whatsapp: +86 13251303762

This 240-ton-per-day seawater desalination system utilizes advanced reverse osmosis technology, efficiently removing salt and impurities from seawater to provide high-quality freshwater for customers. With a modern design and stable, reliable operation, it is particularly well-suited for coastal areas, islands, and other scenarios requiring large-scale freshwater supply.

Product Specifications

  • Fresh Water Output:200tons per day • Desalination rate:99.2%
  • System recovery rate: 35% • TDS: less than 700PPM
  • Power Consumption: 52.5KW
  • PH value of inlet water: 3~10
  • Voltage: 380V/50HZ, 440V/60HZ, 480V/60HZ
  •  Size:12000*1600*2600mm
  • Working pressure:3.5~5.5MPA
  •  Net weight of equipment: 9000KG
  • Operating temperature:5~45℃
  • Packing net weight: 12000KG
  • Inlet TDS: less than 40000PPM

System function

1. Output Water Quality: Meet national drinking water standard < GB5749-2006 >

2.Over-pressure protection for the output water from high pressure pump, When the high-pressure pump outlet pressure exceeds 6.5mpa, the equipment will stop automatically and show sound and Light alarm.

3.Under pressure protection when the inlet pressure of the high-pressure pump is insufficient. When the water inlet pressure of

the high-pressure pump is lower than 0.05mpa due to insufficient pre-treatment water supply, it will automatically stop and send an audible and visual alarm.

4. Equipped with manual multi-channel valve, the sand filter can be filtered, backwashed and directly flushed conveniently and quickly as required.

5. The alarm system has the function of manual confirmation and silencing.

6.Equipped with reverse osmosis membrane cleaning system, it can carry out physical cleaning, concentrated water replacement, chemical cleaning and filling of protective fluid for reverse osmosis membrane components
