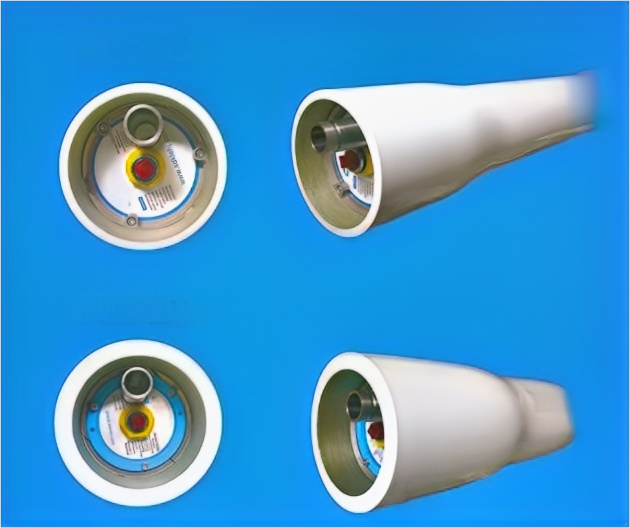

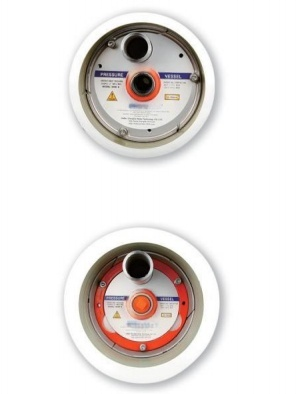

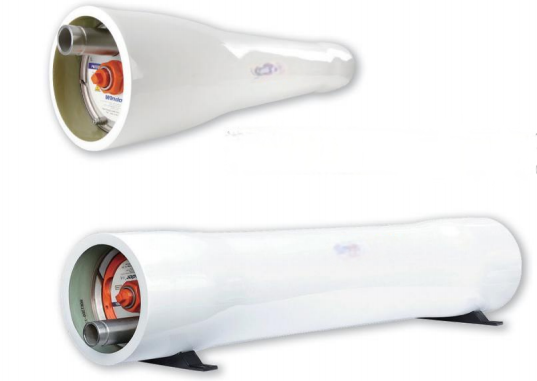

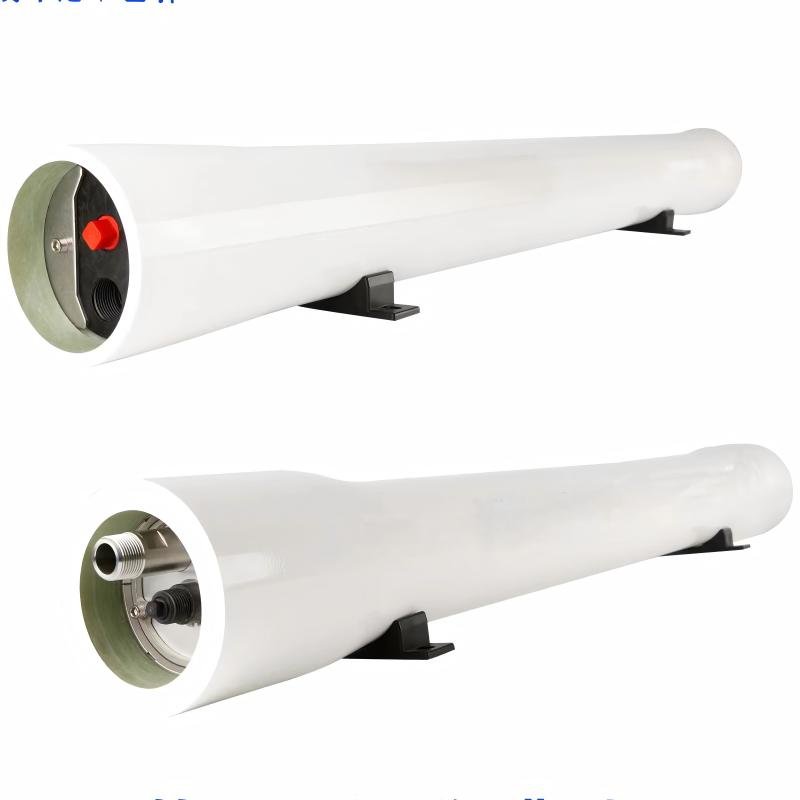

8-Inch End Port RO Membrane Housing
Our 8-Inch End Port RO Membrane Housing is designed for both low and high-pressure reverse osmosis systems, providing excellent performance and durability. Available in models ranging from 300PSI to 2000PSI, it supports 1 to 8 membrane elements, making it versatile for various applications. Built to withstand over 100,000 cycles, this membrane housing ensures long-lasting reliability. With a wide operating temperature range of -10°C to 66°C (14°F to 150°F), it is ideal for use in diverse industrial water filtration systems.
Our 8-Inch End Port RO Membrane Housing is specifically engineered for high-pressure and low-pressure reverse osmosis (RO) systems. It delivers outstanding performance and exceptional durability, ideal for industries requiring high-pressure resistance and longevity in water filtration processes. Available in two models, this membrane housing meets the specific needs of various RO systems, supporting a range of pressures from 300PSI to 2000PSI.
The housing is designed to accommodate 1 to 8 membrane elements, ensuring versatility for various filtration capacities. With its robust build, the membrane housing is resistant to bursting, capable of withstanding repeated cycles while maintaining stability under pressure.
Product Features:
-
High & Low Pressure Options: Available in low-pressure models ranging from 300PSI to 600PSI and high-pressure models ranging from 1000PSI to 2000PSI, making it suitable for a wide range of filtration applications.
-
Versatile Compatibility: Accommodates 1 to 8 membrane elements, allowing flexibility to meet diverse operational requirements.
-
Durable Construction: Designed for longevity, it has passed over 100,000 cycles in rigorous testing for reliable performance.
-
Exceptional Performance: Built for continuous operation in a wide temperature range from -10°C to 66°C (14°F to 150°F), ensuring performance stability even under extreme conditions.
Technical Specifications:
| Model | BM80E30/450/600 | BM80E1000/1200 |
|---|---|---|
| Design Pressure | 300PSI/450PSI/600PSI | 1000PSI/1200PSI |
| Cyclic Test | 100,000 cycles | 100,000 cycles |
| Burst Pressure | 6 times | 6 times |
| Membrane Elements Capacity | 1-8 elements | 1-8 elements |
| pH Range | 3-11 | 3-11 |
| Operating Temperature | -10°C to 66°C (14°F to 150°F) | -10°C to 66°C (14°F to 150°F) |
| Feed/Concentration Port | 1.5″ | 1.5″ |
| Remote Port | 1″NPT-F | 1″BSP |
Product Design Drawing:
Below is the detailed product design, highlighting the components and dimensions for both the low-pressure and high-pressure models, ensuring versatility and performance across various filtration systems.
