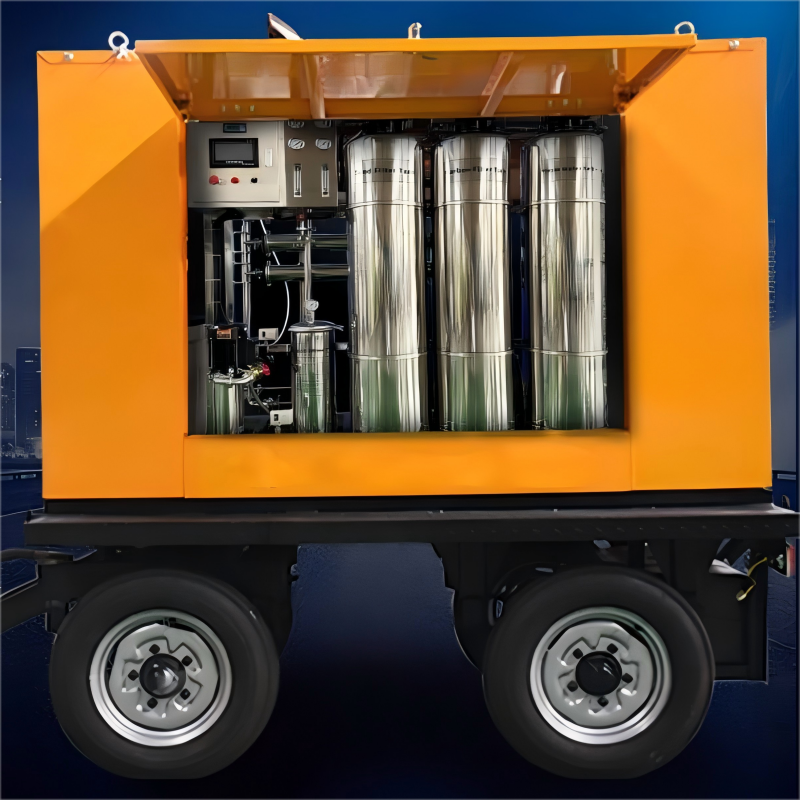

Trailer-Mounted Water Purification System

Portable trailer water purification unit with 15kW generator, RO & UF filtration. Provides safe drinking water for disaster relief, remote sites, and outdoor use.Mobile Trailer-Mounted Water Purification System with Generator

Contáctenos
Categoría:
  • No.36, Qiancheng, Puede, Jinhua, Provincia de Zhejiang
  • Teléfono: +86 13251303762
  • Correo: info@best-filtration.com
  • Whatsapp: +86 13251303762

Product Overview

The Besta Membrane mobile trailer-mounted water purification unit is a self-sufficient clean water solution equipped with its own generator. Designed for flexibility and reliability, it delivers safe, direct-drinking standard water anytime, anywhere—even in remote locations or emergencies.

Características clave

  • Self-Powered Operation:Built-in generator ensures independent operation without external electricity supply.
  • Safe Drinking Water:Meets direct drinking standards – water is safe for immediate consumption without extra treatment.
  • Highly Mobile & Flexible:Trailer-mounted design enables rapid deployment to multiple locations. Ideal for disaster relief, sitios de construcción, outdoor events, and temporary facilities.
  • Sustainable & Eco-Friendly:Reduces reliance on single-use plastic bottles, helping to protect the environment.

Aplicaciones

  • Disaster relief & emergency response
  • Remote communities & field operations
  • Construction projects & temporary camps
  • Outdoor events, festivals, and gatherings

Beneficios

  • Reliable supply of clean drinking water in any environment
  • Easy transport and quick setup
  • Environmentally sustainable solution
  • Enhances public health and well-being

Water purification component parameters

No Nombre Especificación Cantidad
1 Booster Pump XKJ1104S 1 uint
2 Submersible Sewage Pump 50WQ6-16-0.75TM 1 uint
3 Self-Cleaning Filter Flow rate20T/H;Filtering accuracy:1mm 1 uint
4 Precision Filter 5-core 20-inch

Material: 304 acero inoxidable

Elemento de filtro:PP 5µm

 1 colocar
5 Ultrafiltration Membrane Module AQU200-PVC;Membrane area：25.5m³ 2 pcs
6 Bomba de alta presión LVR2-11 1 uint
7 Membrana de ósmosis inversa ULP-4040 4 pcs
8 Pressure Tank 300L 1 pcs
9 Manómetro 3.0MPa/1.0Mpa 2pcs
10 Válvula solenoide de entrada RSPS-15/220V 2 pcs
11 Level Controller PÁGINAS 2 pcs
12 Check Valve CLORURO DE POLIVINILO 1 colocar
13 Medidor de flujo 5T/H 2 pcs
14 Piping System UPVC 1 colocar
15 Electrical Control System Zhengtai 1 colocar

Especificación

  • Purification Unit Dimensions:2200 × 900 × 1200 mm
  • Trailer Dimensions:2400 × 1530 × 700 mm
  • Generator Power:15 KW
