Cartuchos de filtro de heridas de cadena
Cartuchos de filtro de heridas de cadena are deep filtration elements made by precisely winding textile fibers (such as polypropylene, cotton, or fiberglass) into a cylindrical form. Their unique wound structure provides efficient filtration performance and high dirt-holding capacity, making them widely used in water treatment, comida y bebida, chemical, pharmaceutical, and electronics industries.

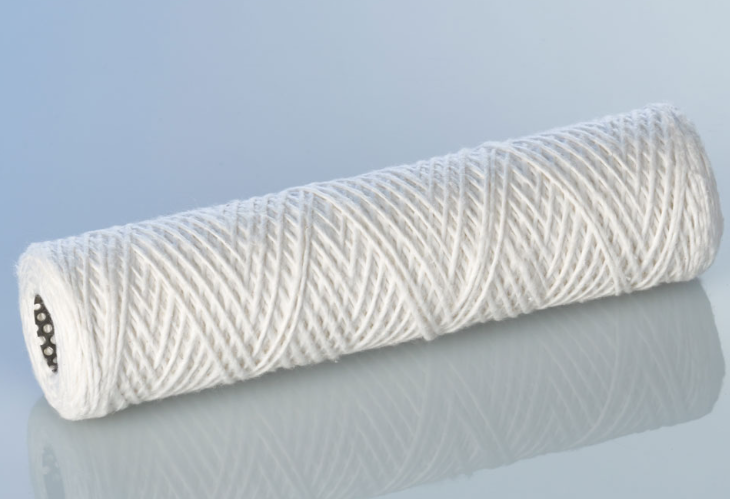

Wound Filter Cartridge
Outer Diameter:60mm 65mm
Inner Diameter:28mm 30mm
Riñonaleplacement pressure differential：0.2-3MPA
Exactitud：1-100µm
Temperatura:
Polypropylene yarn + Polypropylene core ≤ 60°C
Polypropylene yarn + Stainless steel core < 80° C
Cotton yarn + Stainless steel core < 120° C

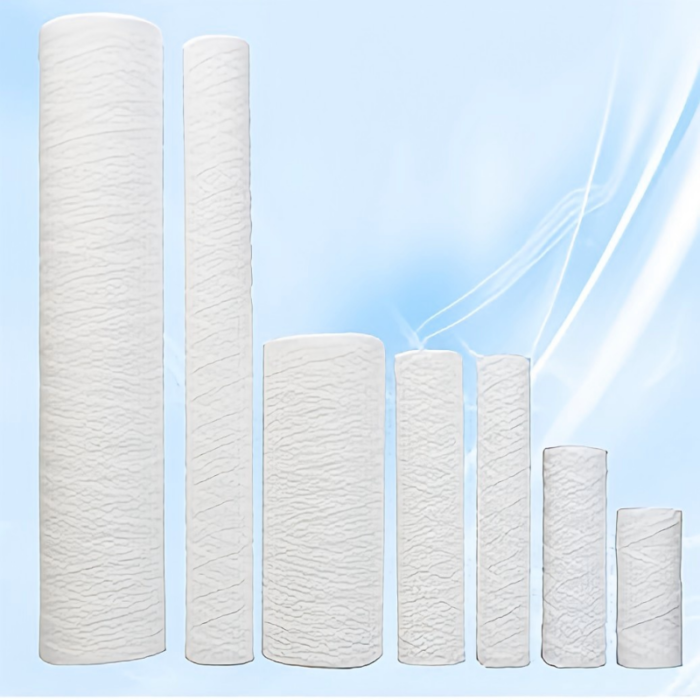

Longitud:5/10/20/30/40 pulgada
Flow rate:0.5-1T/H
Bottom shape:Conical Bottom / Round Bottom / Curved Bottom / Flat Bottom
The wound filter cartridge is made by tightly and orderly winding high-efficiency textile fibers around a PP or stainless steel core. The winding core is primarily made of materials such as fiberglass, polypropylene yarn, and cotton yarn. The filtration layer of the wound filter cartridge is designed to be loose on the outside and dense on the inside. By controlling the tightness and density of the winding core, the filtration performance is regulated. Wound filter cartridges are widely used in the filtration industry.
Characteristics of Wound Filter Cartridges
- High Filtration Precision: Low pressure differential, high flow rate, large contaminant-holding capacity, and long service life.
- Outer Loose, Inner Dense Structure: Provides high-efficiency filtration performance.
- Made from Various Materials: Available in different materials with varying temperature, acid, and alkali resistance, making them suitable for a wide range of industrial applications.
