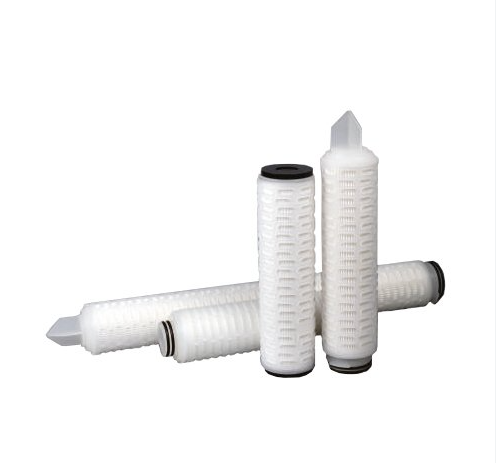

Large Filtration Area PP Pleated Filter Cartridge
Haga clic para ampliar
Gran área de filtración Cartucho de filtro plisado PP

Cartucho de filtro plisado de PP

PP Pleated Filter Cartridges are filtration elements made from polypropylene (PÁGINAS) material con un diseño plisado único que aumenta significativamente el área de filtración, mejorando así la eficiencia de filtración y la vida útil. Known for their high performance, chemical stability, y rentabilidad, they are widely used in water treatment, comida y bebida, pharmaceutical, electrónica, and chemical industries.

Contáctenos
Categoría:
  • No.36, Qiancheng, Puede, Jinhua, Provincia de Zhejiang
  • Teléfono: +86 13251303762
  • Correo: info@best-filtration.com
  • Whatsapp: +86 13251303762

PAGPAG Cartucho de filtro plisado

Fiter media:PP Non-Woven Fabric Filter Membrane

Material central:PÁGINAS

Exactitud：0.1-100µm

Temperatura:≤80 ℃

Longitud:5/10/20/30/40/50/60/70 pulgada

Flow rate:0.5-1T/H

Number of Pleated Layers:105-110

Sealing Material:Fluoroelaste (Fkm) / Nitrile (NBR)/EPDM (Ethylene Propylene Diene Monomer) Rubber

Forma inferior:Conical Bottom / Round Bottom / Curved Bottom / Flat Bottom



The pleated filter cartridge offers broad chemical compatibility and features high filtration efficiency, compact size, large filtration area, Larga vida útil, and high filtration precision. It effectively removes impurities such as microorganisms, bacterias, suspended particles, and sediment from liquids.

Manufacturing Process of Pleated Filter Cartridges

The filter is made by folding three to five layers of filtering media, primarily including non-woven fabric and filter membranes. It features an outer loose and inner dense filtration structure. The core of the filter cartridge is made from pure polypropylene (PÁGINAS) through injection molding, and the filter’s end caps are thermally welded to the core, ensuring excellent sealing and chemical compatibility.
