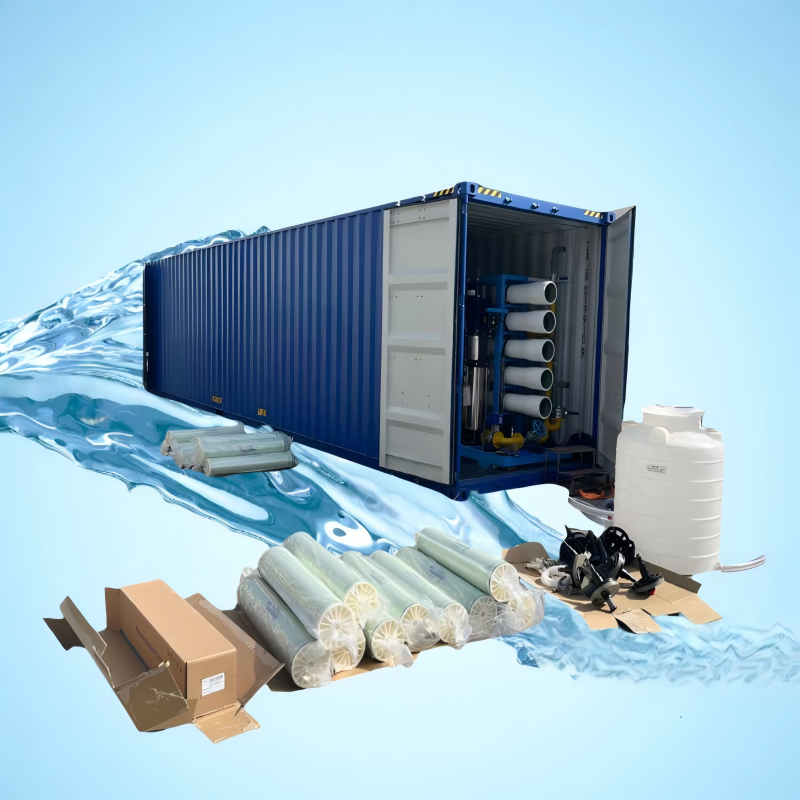

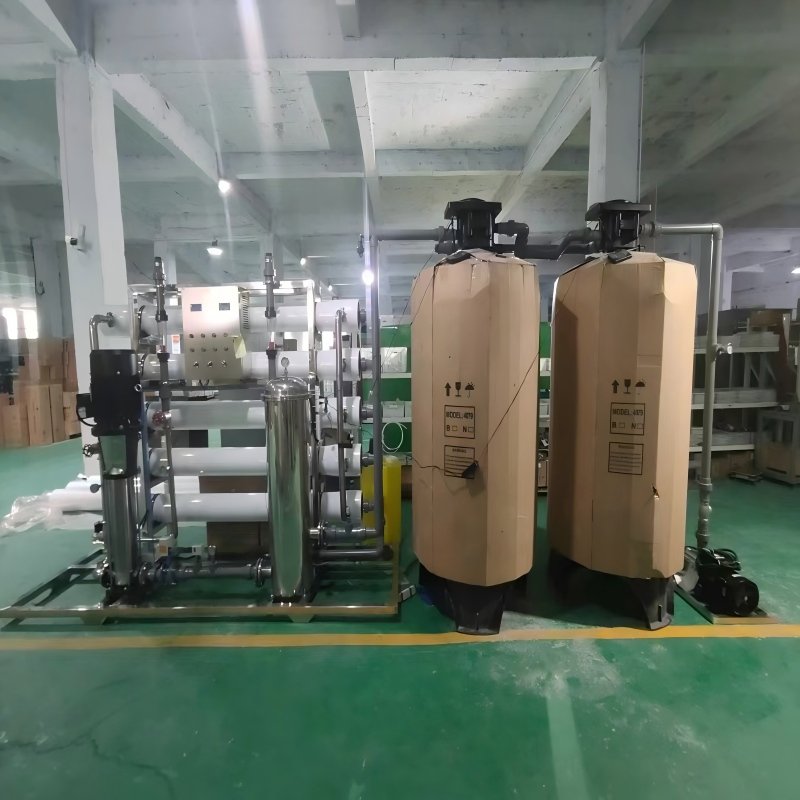

Sistema de purificador de agua BM-RO-6000L

The water treatment system, using raw water tank + bomba de agua cruda + procesador de arena de cuarzo + procesador de carbono activado + filtro de precisión + bomba de alta presión + a reverse osmosis membrane +, the whole of the system according to the tank level changes can be automatically controlled by the machine’s water production, bomba de agua cruda, procesador de arena de cuarzo, procesador de carbono activado, high-pressure pumps, the entire core accessories are all used in the 304 food-grade stainless steel Material, the pipeline adopts food-grade UPVC Material, to ensure that the water from the equipment meets the national drinking water standards.

Contáctenos
Categorías: ,
  • No.36, Qiancheng, Puede, Jinhua, Provincia de Zhejiang
  • Teléfono: +86 13251303762
  • Correo: info@best-filtration.com
  • Whatsapp: +86 13251303762

6000LPH Ro system Configuration

BM-RO-6000L Ro system Configuration
Artículo Nombre Especificación Modelo Unidad Qty. Origin Function
1 Raw water Tank Capacidad:≥6T Piece 1 China Store raw water to ensure the normal operation of the equipment, and will not cause insufficient water supply due to water shortage (customers need to prepare)
2 Raw water pump Raw water pump Modelo：BW12-4

Brand：Xinjie Pump

 colocar 1 China Raw water booster, to ensure that the normal operation of the equipment required raw water pressure, to avoid the lack of raw water pressure caused by the machine can not operate normally.










3









Sands filter

 Quartz sand treatment tank Modelo：3065

Especificación：φ750*1900

Material：FRP

 pedazo 1 China Stores filter media, precipitates and filters raw water, removes floatables, partículas, coloides, algae and visible matter from raw water, and reduces the turbidity of the water.
Cabezal de válvula de filtro Modelo：F99B

Flow：15T/H

Brand：Runxin

 pedazo 1 China
Centre Pipe Dimension：φ50*190mm

Material：Food grade UPVC

 pedazo 1 China
Water distributor 6” mushroom head colocar 1 China
Arena de cuarzo Especificación：6-8mm

Densidad: 1.8 (g/cm3)

Chemical composition: silicon dioxide

Adsorption rate: 98 per cent

 Kg 640 China














4

 Filtro de carbono activado Activated carbon treatment tank Modelo：3065

Especificación：φ750*1900

Material：FRP

 pedazo 1 China Remove harmful substances such as colour, odour, cloro residual, organics and nitrites from raw water.
Filter valve head Modelo：F99B

Flow：15T/H

Brand：Runxin

 pedazo 1 China
Centre tube Dimension：φ50*190mm

Material：Food grade UPVC

 pedazo 1 China
Water distributor 6” Mushroom head colocar 1 China
Carbón activado Granularity: 8*26 (mesh)

Tipo: Primary carbon

Material: fruit shell

Adsorption rate：99.7%

 Kg 225 China














5











































6





Soften resin























Ro system

 Resin treatment tank Modelo：3065

Especificación：φ750*1900

Material：FRP

 pedazo 1 China















Removal of calcium and magnesium ions from raw water typically removes up to 70%.
Cabezal de válvula de filtro Modelo：F99B1

Flow：15T/H

Brand：Runxin

 pedazo 1 China
Centre Pipe Dimension：φ50*190mm

Material：Food grade UPVC

 pedazo 1 China
Water distributor 6” Mushroom head colocar 1 China
resina Tipo：001*7

Adsorption capacity：70%

 Kg 240 China
Security filter Modelo:7 cores

40",304 Food stainless

 colocar 1 China Filter out the fine matter (such as tiny quartz sand, activated carbon particles, etc.) after multi-media filtration, to meet the requirements of the subsequent process for water intake, to ensure the accuracy of water filtration and the protective film filter element is not damaged by large particulate matter
Cartridge 5uno,40inch PP cartridge piezas 7 China
High Pressure Pumps Brand：Xinjie pump

Modelo：BL12-12

 colocar 1 China Pressurise the water that has passed through the multi-media filter to ensure that the reverse osmosis unit is pressurised
RO reverse osmosis vessel Modelo：8040-2
8040 FRP vessel		 pedazo 3 China Core filtration Removes ions. (High-pressure anti-contamination membranes)
Ro membrane Modelo：8040-2

Salt rejection：99.5%

Brand：BM-8040 Ro

 pedazo 6 Key filter
Inlet solenoid valve Modelo：DN40

Brand：Yuyao

 pedazo 1 China Control of pipeline water intake during operation of the water purification system
Wastewater solenoid valve Modelo：DN32

Brand：Yuyao

 pedazo 1 China Control of wastewater discharge during RO membrane rinsing
Low pressure switch Modelo：BD-A3

Brand：BD

 pedazo 1 China Low voltage protection
High pressure switch Modelo：BD-A30

Brand：BD

 pedazo 1 China High voltage protection
Pressure gauge Modelo：10kg pedazo 1 China Show pipe pressure
Pressure gauge Modelo：30kg pedazo 4 China
Regulating Valves Modelo：DN25

Brand：China

 pedazo 2 China Regulates water volume, stops water
Panel Flow Meter Especificación：40Gallon

Modelo：LZM40

Brand：Yuyao

 pedazo 2 China Displays real-time water flow
Medidor de conductividad Modelo：CCT3320 Group 2 China Display real-time online pure water conductivity
7 Pipe High Pressure Stainless Steel/Low Pressure pvc Group 1 China
